特 点 Features

● 新型端子台，接线方便，并附有安全罩。New type terminal block, convenient wiring, and with a safety cover.

● 良好的共模和差模干扰衰减性能。Good CM and DM interference attenuation performance.

● 工业逆变器和电机驱动的EMC解决方案。EMC solutions for industrial inverters and motor drives.

应 用 Application

● 三相电机驱动。Three phase motor drive.

● 工业自动化。Industrial automation.

● 不间断电源。UPS

性能指标 Characteristcs

产品型号表 Filter Table

型号 model	接线方式：输入输出		额定电流A Rated curren	接地电容量nF Grounding capacity	放电电阻KΩ resistance	电路图Fig. Circuit diagram	外形尺寸Fig. Outline Drawing
YX-323-5-	F	F	5	47	220	1	1
YX-323-10-	F	F	10	47	220	1	1
YX-323-16-	F	F	16	47	220	1	1
YX-323-20-	F	F	20	47	220	1	2
YX-323-25-	F	F	25	47	220	1	2
YX-323-35-	F	F	35	47	220	1	2
YX-323-50-	F	F	50	100	220	2	2
YX-323-65-	F	F	65	100	220	2	2
YX-323-80-	F	F	80	100	220	2	3
YX-323-100-	F	F	100	200	220	3	3
YX-323-150-	F	F	150	200	220	3	3

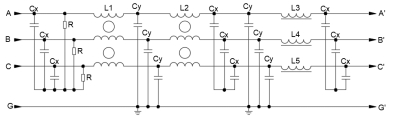

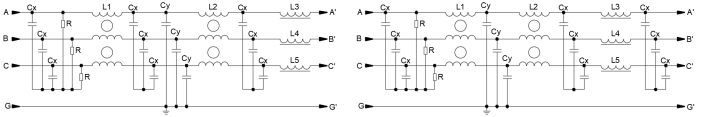

电原理图Typical Circuit Diagram

Fig.1 Fig.2

Fig.3

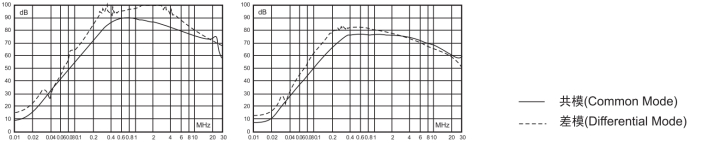

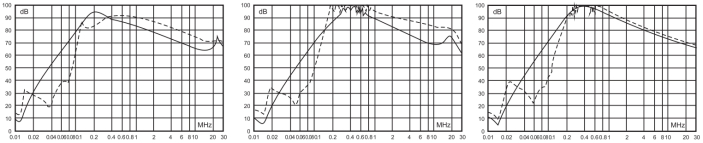

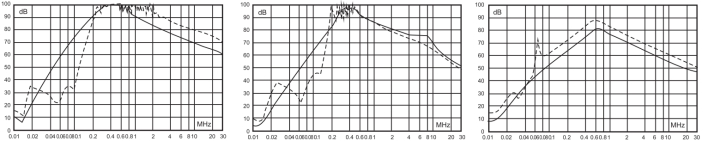

插入损耗 Insertion LOSS in dB (50Ω测量系统，IEC/CISPR No.17号出版物)

5A 10A~16A 20A~25A

35A 50A 65A~80A

100A 150A

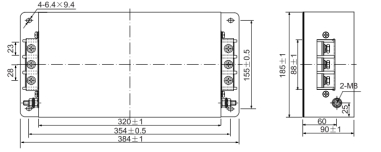

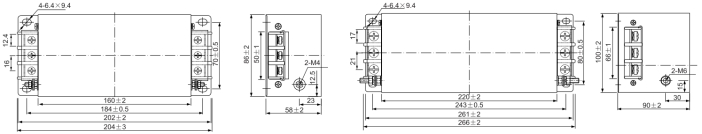

外形尺寸图 Outline Drawing : mm

Fig.1 (5A~16A) Fig.2 (20A~65A)

Fig.3 (80A~150A)
