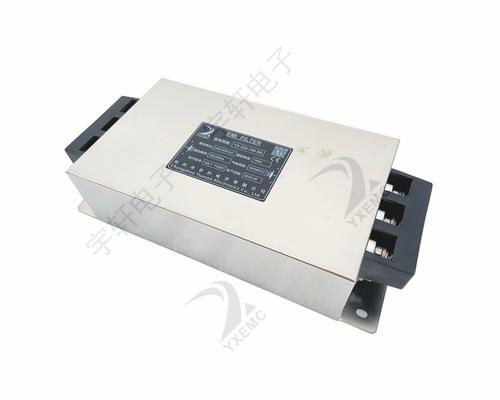

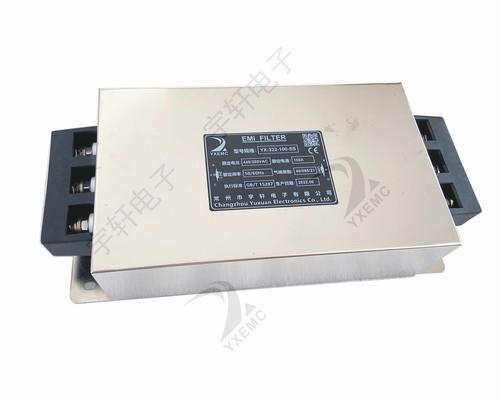

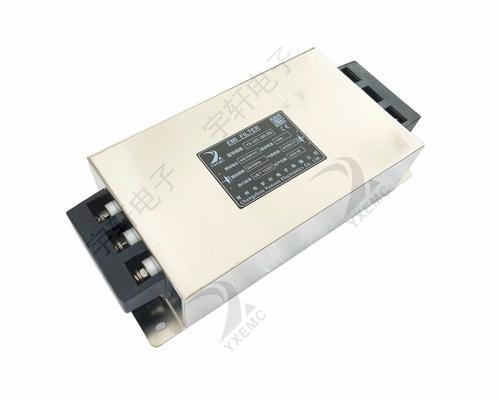

特 点 Features

● 工业逆变器和电机驱动的EMC解决方案。

EMC solutions for industrial inverters and motor drives.

● 漏电流小，底板式安装，简单方便。Small leakage current,

floor type installation, simple and convenient.

● 良好的共模和差模干扰衰减性能。Good common mode and

differential mode interference attenuation performance.

● 结构紧凑，体积小，性价比高。Compact structure, small size,

high cost performance.

应 用 Application

● 三相电机驱动。Three phase motor drive.

● 工业自动化。Industrial automation.

● 不间断电源。UPS

●开关模式电源。SMPS

性能指标 Characteristcs

产品型号表 Filter Table

型号 model	接线方式：输入输出			额定电流A Rated curren	接地电容量nF Grounding capacity	MAX泄漏电流 * leakage current 440VAC/50Hz	电路图Fig. Circuit diagram	外形尺寸Fig. Outline Drawing
YX-322-5-	TT			5	22	<1mA	1	1
YX-322-10-	TT			10	22	<1mA	1	1
YX-322-16-	TT			16	22	<1mA	1	1
YX-322-20-	TT			20	50	<2mA	1	2
YX-322-25-			SS	25	50	<2mA	1	2
YX-322-35-			SS	35	50	<2mA	1	3
YX-322-50-			SS	50	50	<2mA	1	3
YX-322-65-			SS	65	50	<2mA	1	3
YX-322-80-			SS	80	50	<4mA	2	4
YX-322-100-			SS	100	50	<4mA	2	4
YX-322-130-			SS	130	50	<4mA	2	4
YX-322-160-			SS	160	50	<4mA	2	4
YX-322-200-			SS	200	50	<4mA	2	5
*注意：如果在缺两相这种蕞坏的状况下，其漏电流将比正常状态高7.7倍左右 Note: in the worst case of lack of two phases, the leakage current will be about 7.7 times higher than the normal state

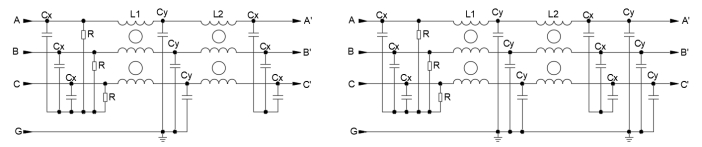

电原理图Typical Circuit Diagram

Fig.1 Fig.2

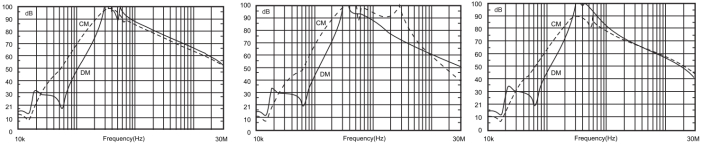

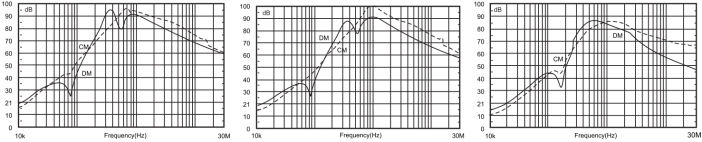

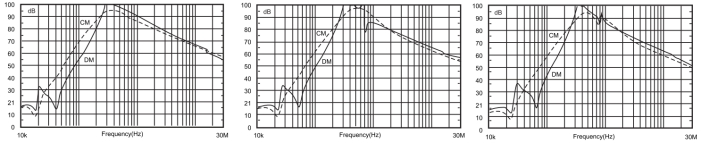

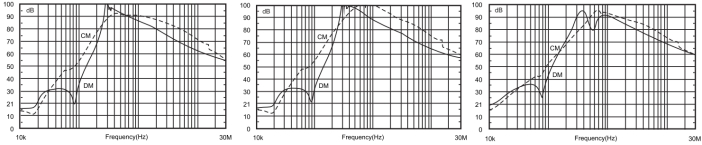

插入损耗 Insertion LOSS in dB (50Ω测量系统，IEC/CISPR No.17号出版物)

5A 10A 16A

20A 25A 35A

50A 65A 80A

100A 130A 160A~200A

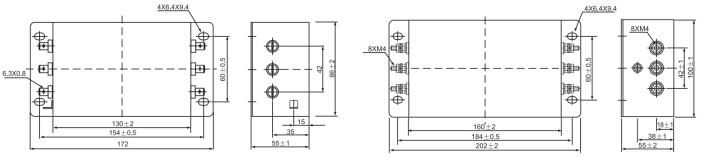

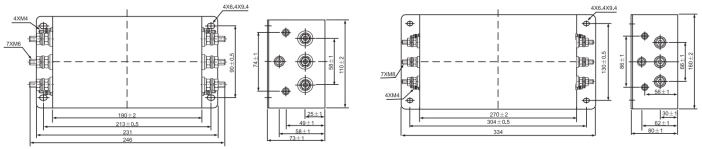

外形尺寸图 Outline Drawing : mm

Fig.1 (5A~16A) Fig.2 (20A~25A)

Fig.3 (35A~65A) Fig.4 (80A~160A)

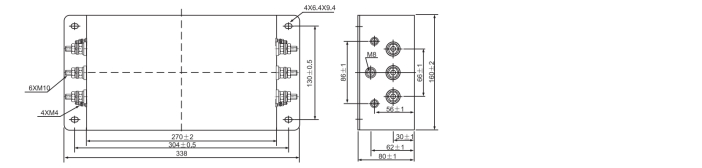

Fig.5 (200A)
