特 点 Features

● PCB线路板安装。PCB board installation.

● 体积紧凑。It's compact.

应 用 Application

● 各种模块电源与小型电子仪器AC或DC侧。

Various module power supply and small electronic

instrument AC or DC side.

性能指标 Characteristcs

产品型号表 Filter Table

型号 model	接线方式：输入输出		额定电流A Rated curren	MAX泄漏电流mA leakage current	放电电阻KΩ resistance	电路图Fig. Circuit diagram	外形尺寸Fig. Outline Drawing
YX-211-1-	P	P	1	0.5		1	1
YX-211-3-	P	P	3	0.5		1	2
YX-211-6-	P	P	6	0.5		1	2
YX-211-10-	P	P	10	0.5	1000	2	3
YX-221-16-	P	P	16	0.5	1000	2	3

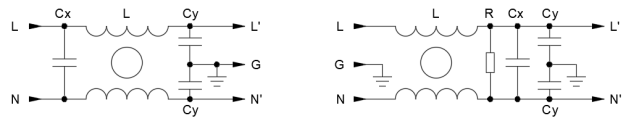

电原理图Typical Circuit Diagram

Fig.1 Fig.2

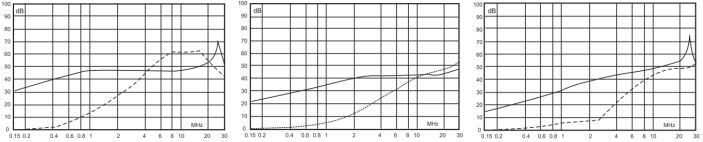

插入损耗 Insertion LOSS in dB (50Ω测量系统，IEC/CISPR No.17号出版物)

1A 3A 6A

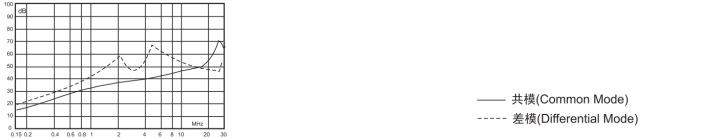

10A~16A

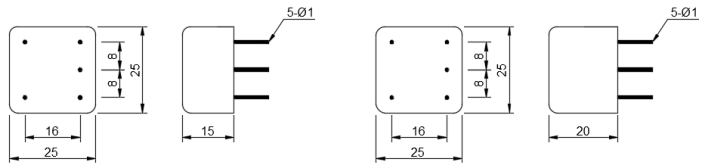

外形尺寸图 Outline Drawing : mm

Fig.1 (1A) Fig.2( 3A~6A)

Fig.3 (10A~16A)
